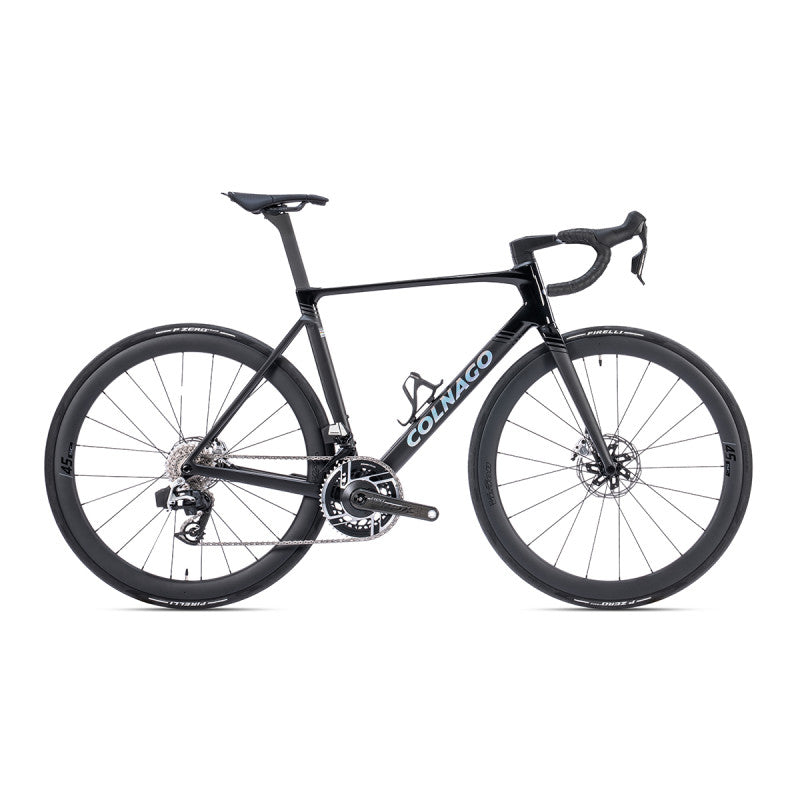

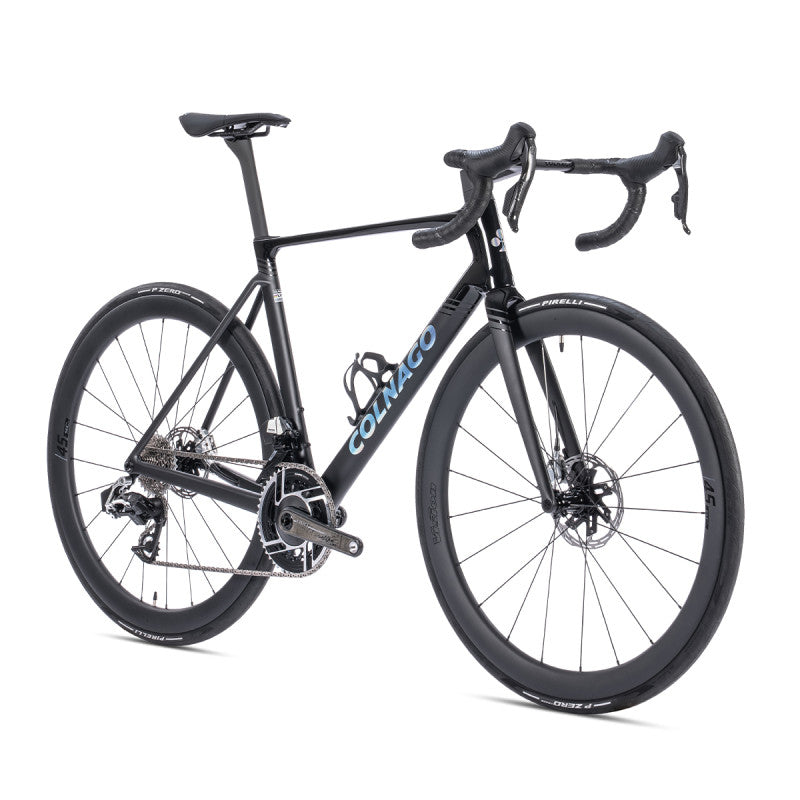

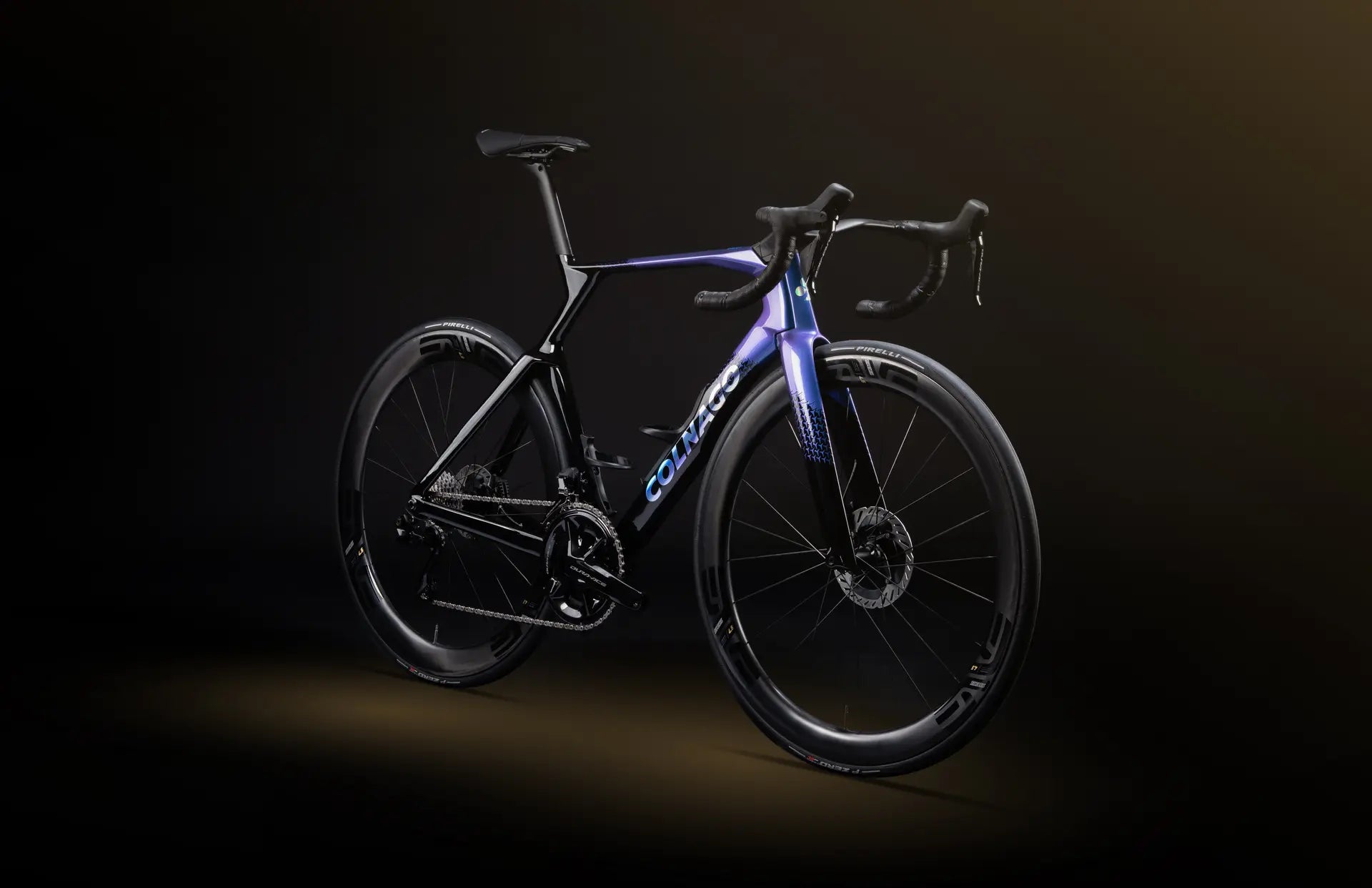

A winning bicycle must be stiff, light, aerodynamic, comfortable, and robust. The V5Rs combines all of these qualities with precision — designed to win.

Frame kit

• Frame (material): Colnago V5Rs Monocoque carbon frame
• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, Semi-Circular section.
• Headset: 1"1/8 and 1"1/4 – SLT Treated Bearings

Seatpost

• Carbon seatpost, 15mm offset (Standard Option)
• Carbon seatpost, 0mm offset (Sold separately)

Through axles

• Diameter: 12 mm, length 100 mm (front) – 142 mm (rear)

Bottom bracket

• BSA

Maximum tyre size

• 32 mm (nominal width)

Components

Handlebar and Stem: CC.01 Carbon Monocoque Integrated Handlebar (Sold separately)

Bottle cage: Colnago Matt Black

The lightest Colnago ever

The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.

Thinner profiles

The experience gained with the Y1Rs has allowed us to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.

Narrow frontal area

The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube – now narrower – helps reduce air resistance and save watts.

Stiff and responsive

The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.

More precise steering

The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.

Absolute carbon quality

Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.
